OPUS PMD 100

zurück

Highlights

  • 30 days power reserve
  • Passing strike on gong
  • Anti-reflective mineral glass, affixed on a mitre
  • Two-part dial with 8 applied and polished indices –
  • Three-dimensional hand-painted spherical moon
  • Display of date

Read more Contact us Calculate the moon phase Presentation VideoMagnifying the dialBrochure PDF

Everything combined – time, date, passage strike and a three-dimensional moon phase display

The Opus case, the newest and most modern case variant from the clock manufacture Erwin Sattler, combined with the newly developed manufacture caliber 1577, finds its climax in the recently presented “Opus PMD 100” model.

PreviousNext
1234
Lupe Opus PMD 100
Load more
TECHNICAL DATA
TECHNICAL DATA
Case- Black varnish with metal inlays
- Black varnish with metal inlays and Macassar-Cassette
Door with magnetic closure, hidden compartment for the crank in the base
Height: 96 cm, width: 25,5 cm, depth: 11 cm
CrystalsAnti-reflective mineral glass, affixed on a mitre
MovementSattler Calibre 1577
Power reserve30 days
DriveWeight 1.600 g with pulley
OscillatorWood rod pendulum with solid, turned brass pendulum bob, polished and nickel-plated
Ball bearings6 precision ball bearings
Jewel bearings8
DialAnodized, two-part dial, hthree-dimensional hand-painted spherical moon, 8 applied
and polished indices, display of date
HandsBlue, skeletonized hands
Strike trainPassing strike on gong, maintaining power mechanism
Beat rate4.320/h
Weight13 kg

Brochure Opus PMD 100

PDF BROCHURE | 2 MB

Opus PMD 100

The Opus case, the newest and most modern case variant from the clock manufacture Erwin Sattler, combined with the newly developed manufacture caliber 1577, finds its climax in the recently presented “Opus PMD 100” model.

Pfeil

MAGNIFIER

Please, move the mouse over the picture.

CALCULATE THE MOON PHASE

Month
  • Januarydsfdsf
  • February
  • March
  • April
  • May
  • June
  • July
  • August
  • September
  • October
  • November
  • December
Day
  • 1
  • 2
  • 3
  • 4
  • 5
  • 6
  • 7
  • 8
  • 9
  • 10
  • 11
  • 12
  • 13
  • 14
  • 15
  • 16
  • 17
  • 18
  • 19
  • 20
  • 21
  • 22
  • 23
  • 24
  • 25
  • 26
  • 27
  • 28
  • 29
  • 30
  • 31
Year
  • 2017
  • 2018
  • 2019
  • 2020
  • 2021
  • 2022
  • 2023
  • 2024
To calculate
Reset to default

Full Moon Calendar

07. Jan

05. Feb

07. March

06. April

05. May

04. June

03. July

31. Aug

15. Sept

14. Oct

13. Nov

13. Dec

Everything combined – time, date, passage strike and a three-dimensional moon phase display

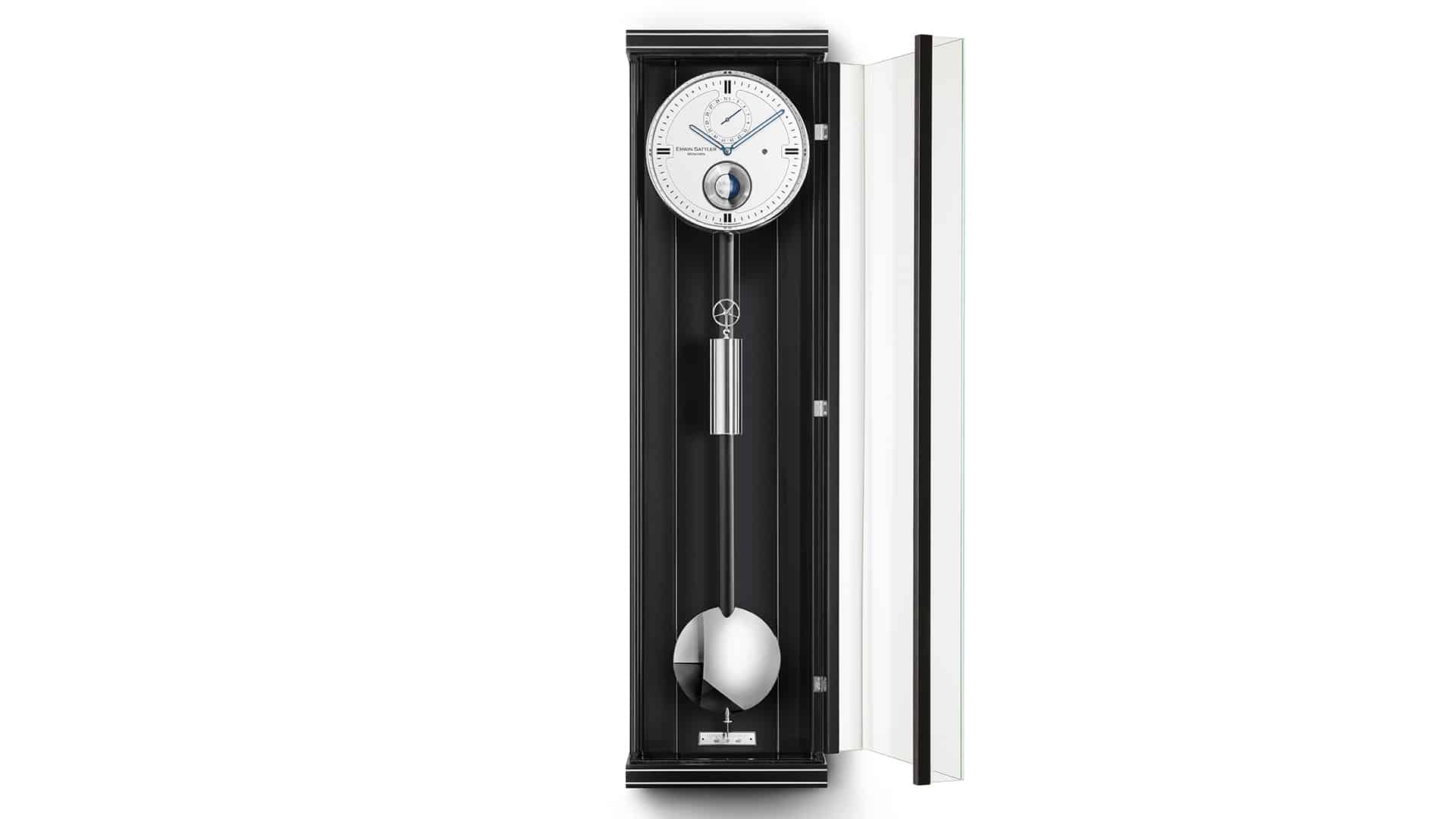

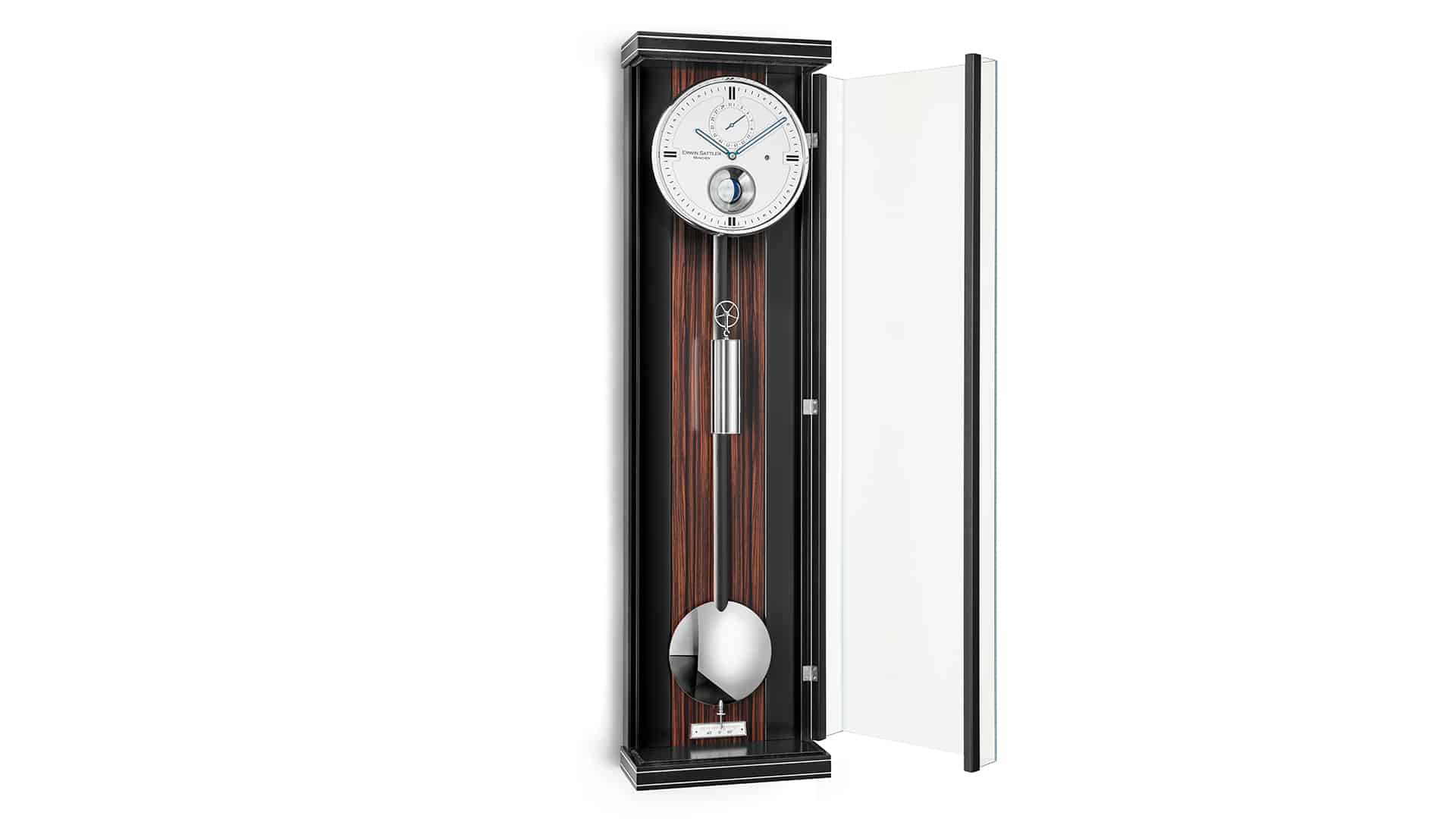

The clockwork with its gold-plated wheels and the maintaining power mechanism, which also transmits the power to the gear train during the winding process, can be viewed at any time thanks to the U-shaped anti-reflective glass door.

The winding crank and the silencing weight for the striking mechanism are safely stored in a compartment on the underside of the case. The modern case is completed by polished, filigree metal inlays.

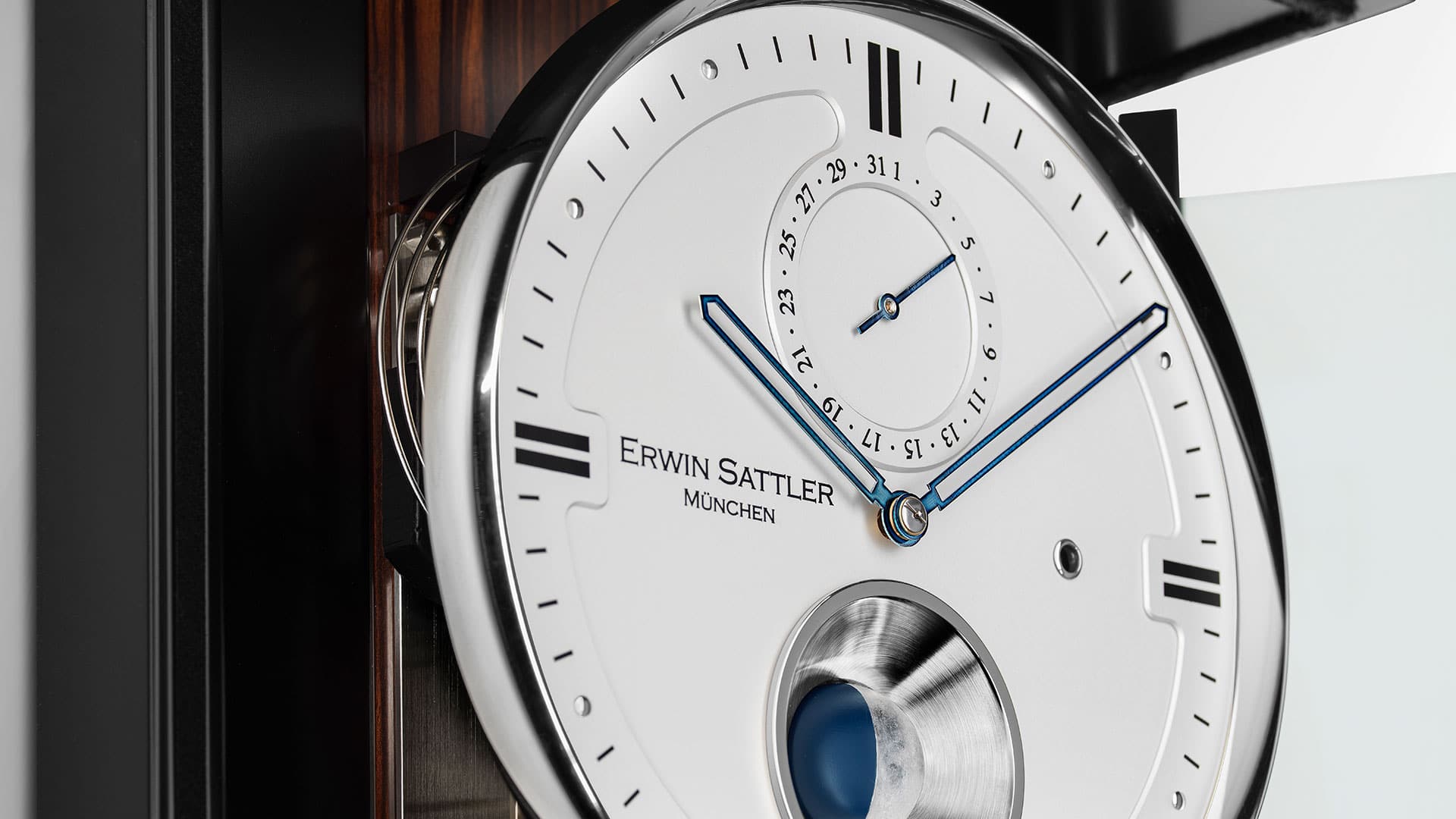

Both visually and technically, the clock with 30 days power reserve delights with its newly designed, two-part dial and skeletonized hands.

The current phase of the moon is displayed on a three-dimensional moon ball, hand-painted in the manufactory, which only needs to be corrected by one day after 120 years.
Below the “12 o’clock position” a small sub-dial display the current date and complete the design of the extraordinarily elegant dial.

Invisible but audible, the passage strike on a gong sounds a bell with a single strike once every hour and thus contributes to the presence of the noble regulator.
