Highlights
- Wheels in brass, polished and gold-plated
- Gear cutting with indexing method
- Temperature- and air pressure compensated Invar pendulum
- Graham escapement, escape wheel with 20 teeth
- Black varnish with metal inlays
- Macassar cassette
The magnificent masterpiece from the manufactory Erwin Sattler
The idea of doubling the proportions of the manufacturer’s previous flagship, the Classica Secunda 1995, preceded this complete reconstruction of an XL precision pendulum clock. The results can now be seen properly; the Gräfelfingen clockmaker has succeeded in creating such a monumental clock with a one-month power reserve.

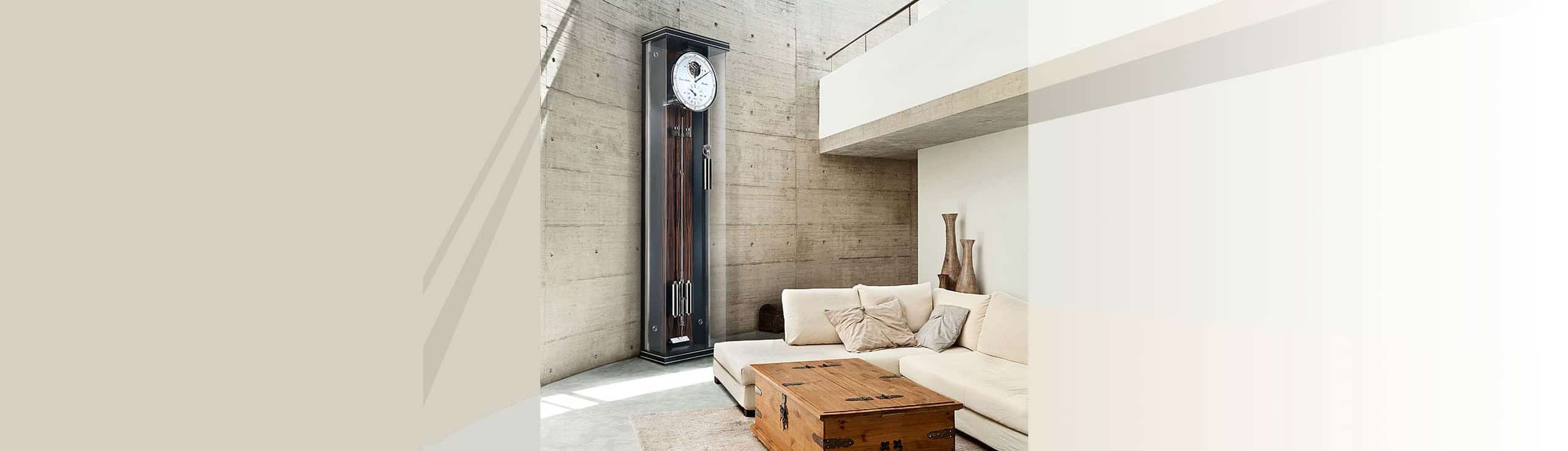

THE GRANDFATHER CLOCK MAXIMA SECUNDA
View the manufacture of the gears and the assembly of the clockwork from the Maxima Secunda.
Equipped with all the same details which also distinguish its smaller siblings in the manufacturer’s precision clock range, the Maxima Secunda, with its 1.5 second pendulum is set to become a pure breed precision pendulum clock.
Mit dem Laden des Videos akzeptieren Sie die Datenschutzerklärung von YouTube.
Mehr erfahren
THE GRANDFATHER CLOCK MAXIMA SECUNDA
The magnificent masterpiece from the manufactory Erwin Sattler
The idea of doubling the proportions of the manufacturer’s previous flagship, the Classica Secunda 1995, preceded this complete reconstruction of an XL precision pendulum clock. The results can now be seen properly; the Gräfelfingen clockmaker has succeeded in creating such a monumental clock with a one-month power reserve.
Mit dem Laden des Videos akzeptieren Sie die Datenschutzerklärung von YouTube.
Mehr erfahren
Technical data
Technical data
| Case | - Black varnish with macassar cassette and metal inlays Height: 3 m, width: 82 cm, depth: 37 cm Base illuminated (optional equipment) |
| Weight | approx. 350 kg |
| Crystals | ESG mineral glass, affixed on a mitre |
| Movement | Sattler Calibre 3000 |
| Power reserve | 30 days |
| Drive | Weight 26 kg with pulley with ball bearings |
| Oscillator | Invar pendulum Ø 20 mm, temperature and air-pressure compensation, twin barometer |
| Ball bearings | 16 units made of stainless steel, screwed-in and gold-plated ball bearing cover |
| Jewel bearings | 4 units in gold-plated, screwed-in chatons, 2 agate anchor pallets |
| Dial | Ø 57,6 cm, anodised |
| Beat rate | 2.400/h = 40/min |
Maxima Secunda
The magnificent masterpiece from the manufactory Erwin Sattler
Equipped with all the same details which also distinguish its smaller siblings in the manufacturer’s precision clock range, the Maxima Secunda, with its 1.5 second pendulum is set to become a pure breed precision pendulum clock. Therefore, for example, a temperature-compensated Invar pendulum with air-pressure compensation was used. Of course, all gear wheels have been geared and gold-plated as part of the sub-process. The Graham escapement, with its 20 toothed escape wheel, inhibits early expiration of the weight in conjunction with the adjustable pallets in the pallet lever. The body of the pendulum is designed as a classic double cylinder.
